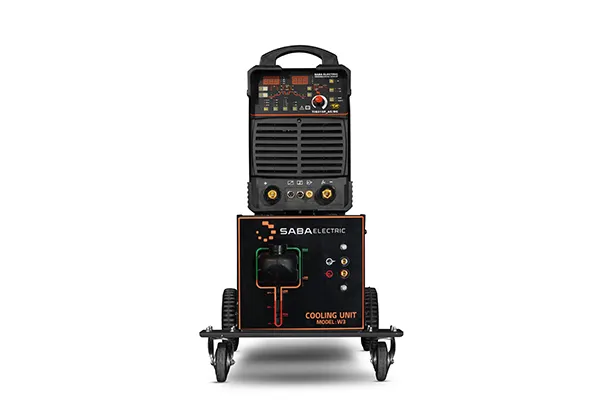

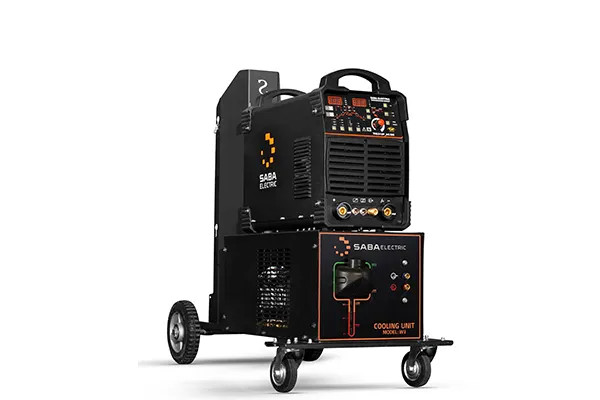

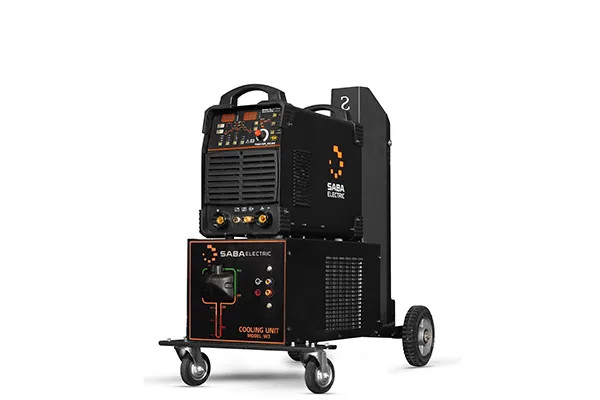

دستگاه جوش آرگون 315 آمپر آب خنک صبا الکتریک مدل TIG 315 P AC DC WC

PRODUCT CODE

3030103302

INPUT POWER

"3 PHASE 380V ±15%

RATED INPUT CURRENT

20A

OUTPUT RANGE

10- 350A 10.4- 22.6V

ARC FORCE

0- 100A

DUTY CYCLE @40°C

315A 60%

NO-LOAD VOLTAGE

45V

AC OUTPUT FREQUENCY

60HZ

CLEAN WIDTH

20-80%

SLOPE- DOWN TIME

0- 10s

PRE- FLOW

0-2s

ARC- LEADING

HF vibration

BASE CURRENT

10-90%

EFFICIENCY

85%

POST- FLOW TIME

0- 10s

DIMENSION (L*W*H)

54.8*36*56.5cm

INSULATION CLASS

B

NET WEIGHT

33kg

PROTECTION CLASS

IP23

PULSE DUTY CYCLE

10- 90%

PULSE FREQUENCY

0.5-300HZ
